2. Overview

LAMMPS-GUI is a graphical text editor customized for editing LAMMPS input files. It uses the LAMMPS C-language library interface and thus can run LAMMPS directly using the contents of the editor’s text buffer. It can retrieve and display information from LAMMPS while it is running, display visualizations created with the dump image command, and is adapted specifically for editing LAMMPS input files through syntax highlighting, text completion, and reformatting, and linking to the online LAMMPS documentation for known LAMMPS commands and styles.

LAMMPS-GUI aims to support a workflow similar to the traditional experience of running LAMMPS using a text editor, a command-line window, launching the LAMMPS text-mode executable printing output to the screen, and post-processing and visualizing LAMMPS’ output but just integrated into a single application.

LAMMPS-GUI integrates well with graphical desktop environments where the .lmp filename extension can be registered with LAMMPS-GUI as the executable to launch when double-clicking on such files using a file manager. LAMMPS-GUI will launch and read the file into its buffer. Input files can also be dropped into the editor window of the running LAMMPS-GUI application, which will close the current file and open the new file.

LAMMPS-GUI makes it easier for beginners to get started running LAMMPS and is well-suited for LAMMPS tutorials, since you only need to work with a single, ready-to-use program for most of the tasks. It is available for download as a pre-compiled package for popular operating systems (Linux, macOS, Windows). This saves time and allows users to focus on learning LAMMPS itself, without the need to learn how to compile LAMMPS, learn how to use the command line, or learn how to use a separate text editor, plotting or visualization program.

The tutorials at https://lammpstutorials.github.io/ are specifically designed for use with LAMMPS-GUI. Their tutorial materials can be downloaded and edited directly from within the GUI while automatically loading the matching tutorial instructions into a web browser.

While making it easy for beginners to get started with LAMMPS, it is expected that LAMMPS-GUI users will eventually transition to workflows that most experienced LAMMPS users employ. That traditional procedure is effective for people proficient in using the command line, as it allows them to use the tools for the individual steps that they are most comfortable with. In fact, it is often required to adopt this workflow when running LAMMPS simulations on high-performance computing facilities.

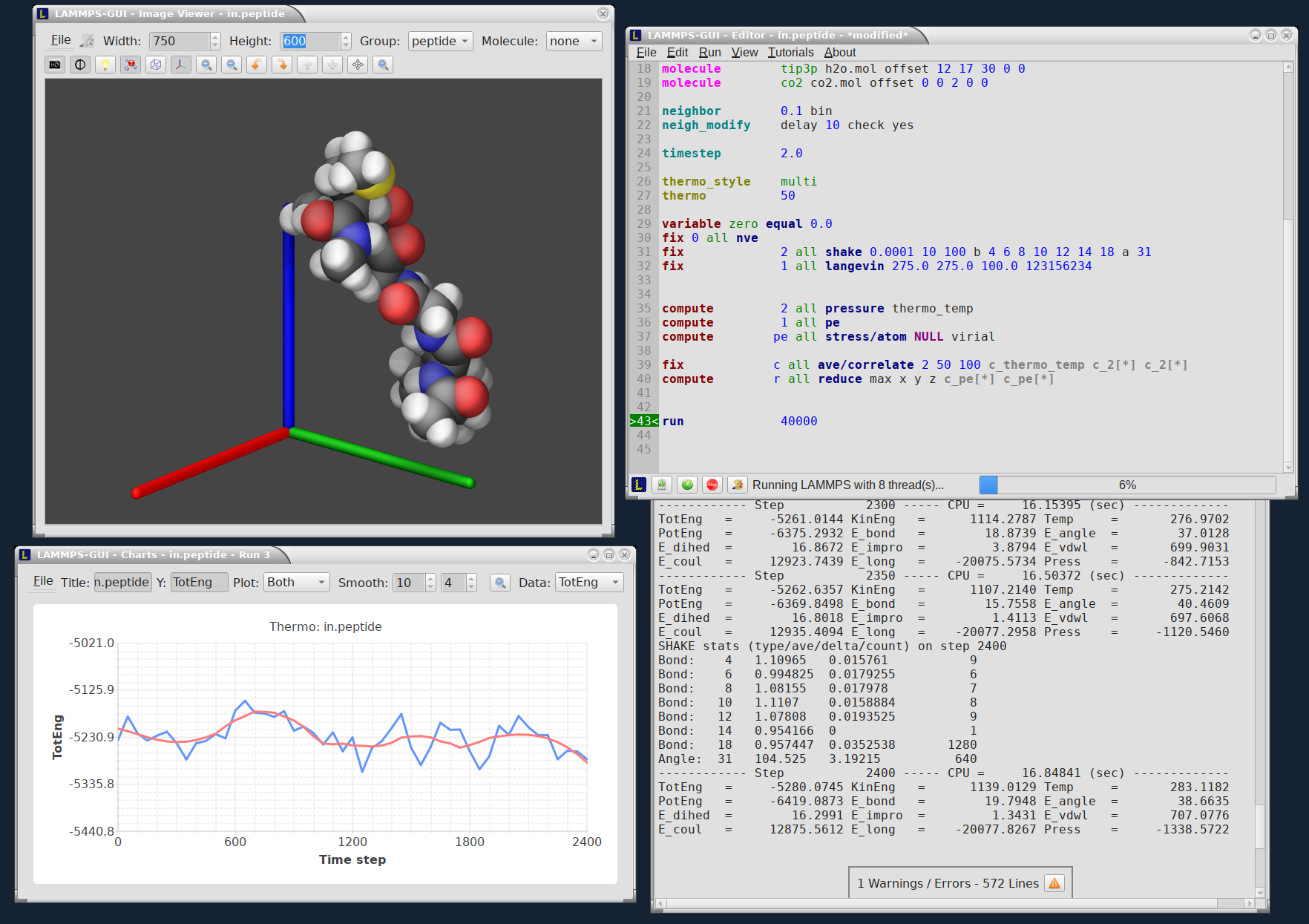

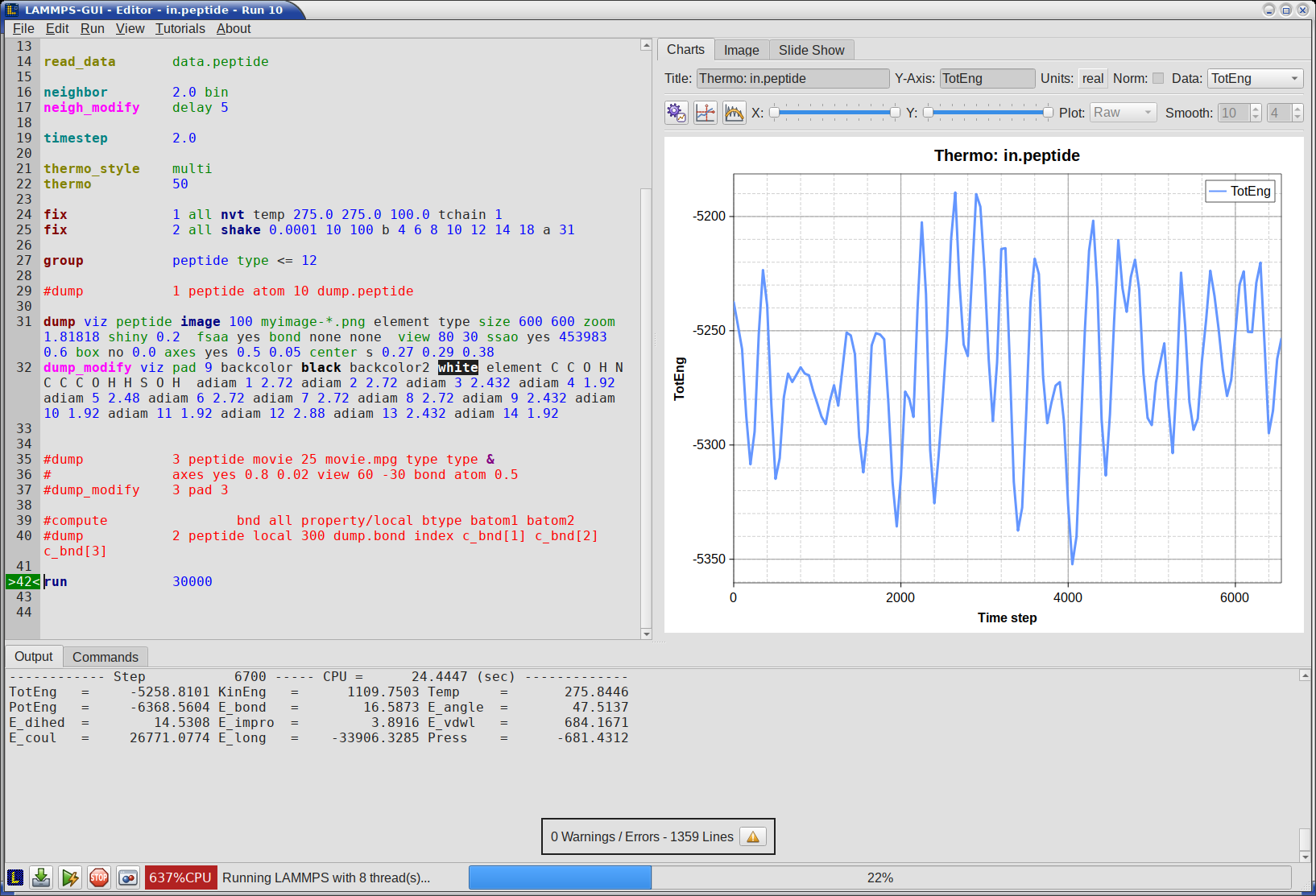

fullscreen1 fullscreen2

Most features in LAMMPS-GUI have been exposed to keyboard shortcuts, making it also appealing for experienced LAMMPS users for prototyping and testing simulation setups.

LAMMPS-GUI Key Features

A detailed discussion and explanation of all features and functionality are in the following pages. Here are a few highlights of LAMMPS-GUI:

  • Individual windows or Combined Main window viewing mode

  • Text editor with line numbers, syntax highlighting, and find & replace, customized for LAMMPS

  • Text editor features command completion and indentation for known commands and styles

  • Input validation with a static pre-run check of the input script and a dry-run mode that executes only the setup phase of each command

  • Switch its working directory to the folder of the file in the buffer

  • Indicator for currently executed command and line that caused an error

  • Progress bar indicates how far a run command has completed and how the CPUs are utilized

  • Context-sensitive help for LAMMPS commands via the online documentation

  • Auto-adapting to features and packages available in the LAMMPS library in use

  • LAMMPS is running in a concurrent thread, so the GUI remains responsive

  • LAMMPS can be started and stopped with a mouse click or a hotkey

  • Screen output is captured in an Output window

  • Many adjustable settings and preferences are persistent, including the 5 most recent files

  • Thermodynamic output is captured and displayed as a line graph in a Charts window

  • Export of thermodynamic data to CSV, YAML, and multi-column text format

  • Create simple plots from imported CSV, YAML, and plain multi-column data

  • Multiple post-processing options for plot data, and plot style customizations

  • Interactive visualization of current state via calling dump image

  • Capture of images created by dump image in the Slide Show window

  • Export of Slide Show animations to movie files, or images to arbitrary formats

  • Dialog to set variables, similar to the LAMMPS command-line flag ‘-v’ / ‘-var’

  • Support for GPU, INTEL, KOKKOS/OpenMP, OPENMP, and OPT accelerator packages

  • Inspection of binary restart files created by LAMMPS

  • View text, image, and animation/movie files

  • Integration with LAMMPS tutorials

  • Command prompt window for issuing shell commands with command and filename expansion, scrollable history and aliases

  • Update dynamically loaded LAMMPS library from LAMMPS download server
